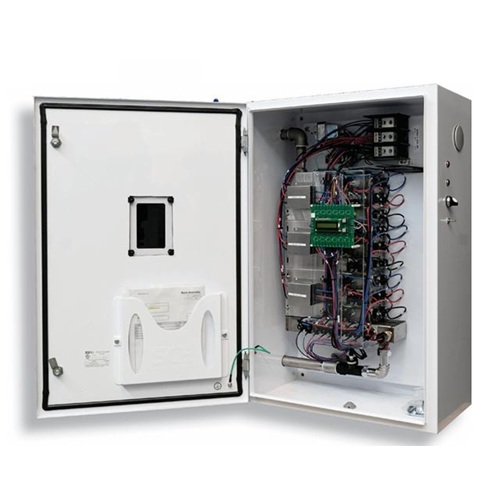

Stiebel Eltron CE Plus 27 kW (480V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CE Plus 27 kW (480V Delta) is a high-voltage, industrial-grade thermal solution engineered specifically for demanding commercial and industrial environments. Utilizing a 480V 3-phase Delta configuration, this model (Part Number: CE-Plus-027-480) delivers a continuous, instantaneous supply of hot water with exceptional 99% energy efficiency. By eliminating standby heat losses associated with traditional tank systems, it provides a compact, powerful, and cost-effective alternative for facilities with high-capacity hot water needs.
Performance & Electrical Specifications
Designed to withstand the rigors of mission-critical facilities, the CE Plus series integrates advanced microprocessor controls and self-cleaning technology to ensure precision and reliability.
- Power Output: 27.02 kW at 480V.
- Amperage: 32.51 Amps.
- Breaker Requirement: 40A (3-Pole).
- Temperature Rise:
- 184°F rise at 1 gpm.
- 92°F rise at 2 gpm.
- 61°F rise at 3 gpm.
- Activation Rate: Minimum activation flow of 0.7 gpm, ideal for high-efficiency and low-flow commercial fixtures.
- Max Flow Rate: High-capacity internal design supports demanding requirements up to 10.6 gpm at 60 psi.
Engineering & Durability
- 316L Stainless Steel Heat Exchanger: Constructed with premium 316L stainless steel for the heat exchanger and all internal pipe connections, offering superior resistance to chemical corrosion, thermal fatigue, and high-pressure stress.
- Direct Coil™ Heating System: Features a specialized heating element design that vibrates during operation to actively prevent the accumulation of limescale and mineral deposits, ensuring long-term reliability in hard water areas.
- Advanced Flow Control™: Exclusive technology that automatically maintains consistent output temperatures by modulating water flow if the facility demand exceeds the unit’s maximum heating capacity.
- Industrial Protection: Standardized in a NEMA 3 enclosure for robust protection. Optional NEMA 4 and 4X (Stainless Steel) enclosures are available for facilities requiring wash-down ratings or protection in highly corrosive environments.
- Multi-Level Safety: Equipped with four independent levels of over-temperature protection, an automatic internal air vent, and a lead-free brass pressure relief valve.
Compliance & Quality Assurance
- Standards: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No.88.
- Lead-Free Compliance: Tested and certified by the WQA against NSF/ANSI/CAN 372 for lead-free construction.
- Warranty: Protected by a 6-year leakage warranty and a 2-year warranty on all parts and materials.
- Origin: Proudly manufactured in the USA.
