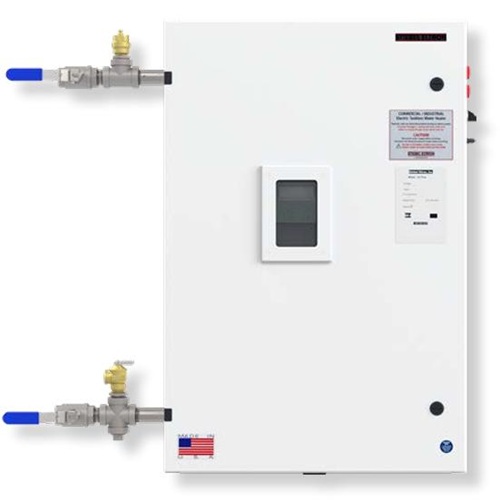

Stiebel Eltron CE Plus 108 kW (480V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CE Plus 108 kW (480V Delta) is the pinnacle of industrial electric water heating, engineered to handle the most demanding thermal loads in large-scale commercial and industrial sectors. Designed for 480V 3-phase Delta electrical architectures, this flagship model (Part Number: CE-Plus-108-480) operates at a remarkable 99% energy efficiency. By delivering an immense volume of hot water instantaneously, it eliminates the massive standby energy losses and extensive floor space requirements associated with traditional industrial boiler systems or storage tanks.
Performance & Electrical Specifications
The CE Plus 108 kW is built for extreme performance, providing the highest temperature rise capabilities in its class for heavy-duty process heating and massive sanitation requirements.
- Power Output: 108.00 kW at 480V.
- Amperage: 129.90 Amps.
- Breaker Requirement: 150A (3-Pole).
- Temperature Rise Capability:
- 737°F rise at 1 gpm.
- 368°F rise at 2 gpm.
- 246°F rise at 3 gpm.
- 184°F rise at 4 gpm.
- Activation Rate: An ultra-low minimum activation flow of 0.7 gpm ensures consistent operation even with high-efficiency sensor fixtures.
- Maximum Flow Rate: Advanced internal fluidics support high-capacity facility requirements up to 10.6 gpm at 60 psi.
Industrial-Grade Engineering & Durability
- 316L Stainless Steel Architecture: The unit is constructed with a high-grade 316L stainless steel heat exchanger and internal plumbing, providing maximum resistance to chemical corrosion and thermal stress.
- Direct Coil™ Heating Technology: This proprietary design features heating elements that vibrate during operation to mechanically prevent the buildup of limescale and mineral deposits. This self-cleaning action maintains peak thermal transfer and extends the operational life of the unit in harsh environments.
- Advanced Flow Control™: Exclusive technology automatically modulates water flow to maintain precise output temperatures if the facility's demand temporarily exceeds the unit's 108 kW capacity.
- NEMA Protection Options: Units come standard in a NEMA 3 enclosure. Optional NEMA 4 and 4X (Stainless Steel) enclosures are available for wash-down environments or highly corrosive atmospheres.
- Comprehensive Safety Protocols: Integrated with four independent levels of over-temperature protection, an automatic internal air vent, and a lead-free brass pressure relief valve.
Compliance & Quality Assurance
- Safety Certifications: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No. 88.
- Lead-Free Compliance: Tested and certified by the WQA against NSF/ANSI/CAN 372.
- Commercial Warranty: Backed by a 6-year warranty against leakage and a 2-year warranty on all components.
- Origin: Proudly manufactured in the USA.
Equip your high-demand industrial facility with the maximum power of the Stiebel Eltron CE-Plus-108-480. Secure the best price or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical assistance.
Download the C Series Commercial Options List
