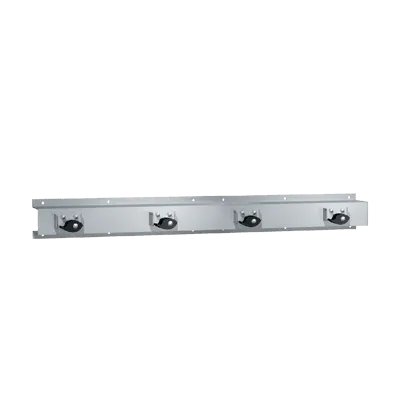

ASI 8215-4 Surface-Mounted Mop Rack, 4 Holders
The ASI 8215-4 is a 36-inch surface-mounted rack for organizing four mop or broom handles. Its pivoting, spring-loaded holders use serrated rubber cams to grip handles.
Specifications
- Four pivoting, spring-loaded holders with ribbed, serrated rubber cams
- 36 inches long; overall dimensions are 36 inches wide by 4-1/2 inches high
- Formed 20-gauge Type 304 stainless steel channel with a satin finish
- Projects 3-1/2 inches from the wall
- Surface mounted; mounting holes are provided
To use a holder, push the mop or broom handle upward into the grip jaw until it seats behind the clamp-plate rib. The spring holds the cam against the handle, and gravity keeps the mop clamped in position.
Installation guidance
Use #10 self-threading pan-head screws through the provided holes; screws are by others. For general utility placement, ASI recommends mounting the rack with its bottom 70 inches above the finished floor. For manufacturer guidance concerning the 2010 ADA Accessibility Standards, install it with the top of the hook no higher than 48 inches above the finished floor.
