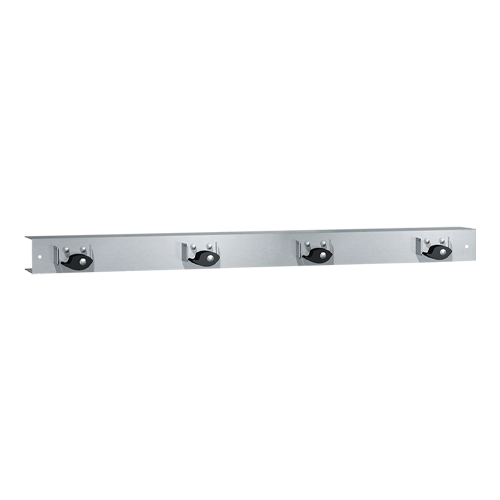

ASI 0796-4 Mop Rack, 4-Holder Surface-Mounted
The ASI 0796-4 is a surface-mounted mop rack for four round mop or broom handles measuring 7/8 to 1-1/4 inches in diameter.
Specifications
- Four pivoting, spring-loaded holders with serrated rubber cams.
- Formed 20-gauge Type 304 stainless steel channel with a #4 satin finish.
- Dimensions: 36 inches wide x 3 inches high x 1-3/4 inches deep; projects 1/2 inch from the wall.
- Ribbed cadmium-plated steel brackets.
Mounting and use
Mounting screws are not included. For general utility, the manufacturer specifies #10 self-threading pan-head screws through the channel holes and a mounting height of 70 inches AFF measured from the bottom of the rack. The manufacturer’s 2010 ADA guidance specifies installing the rack with its top no higher than 48 inches AFF when clear floor access is provided; this is installation guidance, not a blanket compliance guarantee.
To load a handle, push it upward into the grip jaw until it seats behind the clamp-plate rib. The spring holds the cam against the handle, and gravity holds the mop in position.
