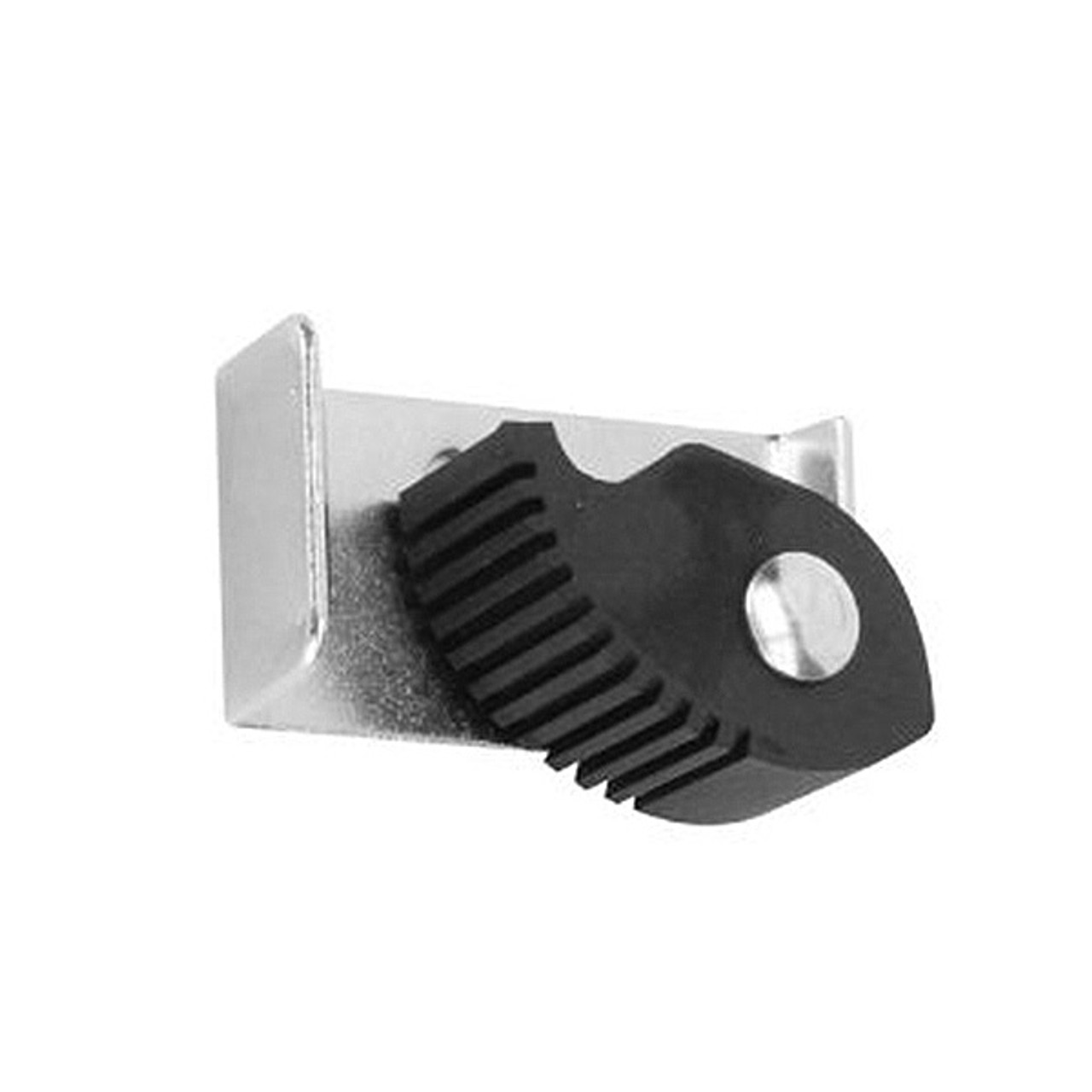

ASI 0795 Single Surface-Mounted Mop Holder
Fabricated of cadmium-plated steel and ribbed for rigidity, this holder grips one round mop or broom handle from 7/8 in. to 1-1/4 in. diameter with a pivoting, spring-loaded serrated rubber cam against a ribbed clamp plate.
Mounting and placement
The holder measures 2-1/2 in. W x 1-1/4 in. H x 1-3/16 in. D and surface mounts with two #10 self-threading pan-head screws through the back plate; screws are supplied by others. For general utility, ASI recommends mounting the bottom of the holder 70 in. above finished floor (AFF). The manufacturer’s guidance for the 2010 ADA Accessibility Standards specifies a maximum top height of 48 in. AFF; this is installation guidance, not a blanket compliance guarantee.
