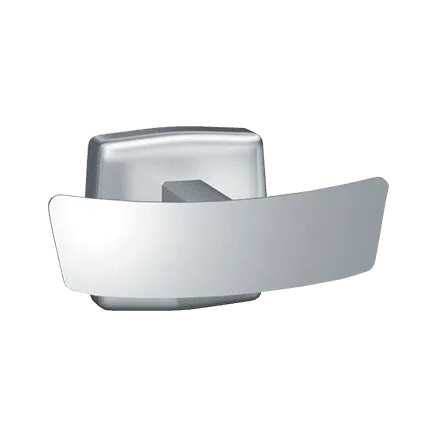

ASI 7345-S Double Surface-Mounted Robe Hook
The ASI 7345-S is a surface-mounted double robe hook with a satin finish, suited to robes, clothing and small carry bags. Its 4-inch-wide stainless steel bar forms a hook at each end and projects 2 inches from the wall.
Specifications and installation
- Type 304 stainless steel with satin finish.
- Overall dimensions: 4 in. W × 2 in. H × 2 in. D (102 × 51 × 51 mm).
- Mounts to a wall or the back of a door with two #10 self-threading screws, supplied by others, through the mounting plate into suitable prepared mountings or other suitable hardware for the surface.
- Hang the post and flange assembly on the mounting plate, then tighten the set screw to lock it in place.
- ASI's installation guidance gives a 48 in. maximum height to the top of the hook; it specifies lower maximum heights in certain obstructed-reach conditions. Refer to the manufacturer's instructions for those conditions and applicable requirements.
- Manufacturer-stated warranty: one year from invoice date.
