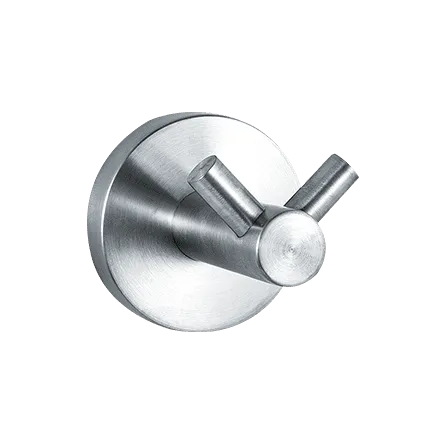

ASI 7312 Double Robe Hook
The ASI 7312 is a surface-mounted double robe hook for a finished wall or door, with two hooks set 90° apart and a 2-3/8-inch projection. Its Type 304 stainless steel construction has a satin finish.
Specifications and installation
- Hook post: 22 gauge; mounting cup: 19 gauge.
- Overall dimensions: 1-15/16 × 1-15/16 × 2-3/8 inches (49 × 49 × 60 mm).
- Suitable for robes, clothing, and small carry bags.
- Mount with the two provided M4 × 39 (#6 × 1-1/2-inch) screws and plastic wall anchors, or use suitable hardware for the door or wall conditions. Clip the flange onto the mounting cup and tighten the provided locking set screw with the provided 2.5 mm hex key.
- For the stated 2010 ADA reach condition, install with the top of the hook no higher than 48 inches above the finished floor when clear floor reach is provided. For general utility, place the mounting-cup centerline at 68 inches above the finished floor.
