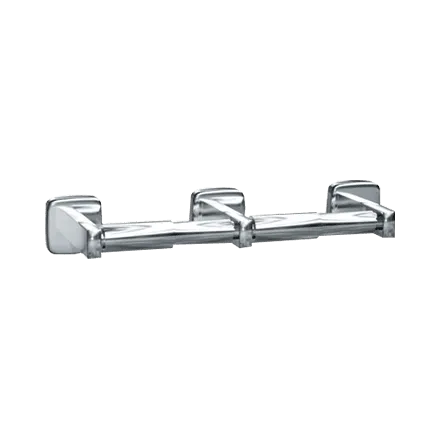

ASI 7305-2B Double-Roll Toilet Tissue Holder
The ASI 7305-2B is a surface-mounted, bright-finish double toilet tissue holder for commercial restrooms. It holds two standard-core rolls up to 6 inches in diameter; the manufacturer also specifies 1,800-sheet standard-core rolls. Chrome-plated rollers distinguish this model.
Specifications
- Material and finish: Type 304 stainless steel, bright finish, with chrome-plated rollers.
- Capacity: two standard-core rolls up to 6 inches in diameter; manufacturer specifies 1,800-sheet standard-core rolls.
- Dimensions: 13-1/2 inches W x 2 inches H x 3-7/8 inches D.
- Heavy-gauge concealed wall bracket; included mounting plates are 18-gauge steel.
- Spring-loaded spindles revolve freely and hold rolls until their cores are removed.
Mounting and placement
Mount the plates through their provided holes using #10 self-threading screws (by others) into suitable prepared mountings, or use other suitable hardware for the wall (by others). Hang the post and flange assemblies on the plates and tighten the setscrews. For installations following the manufacturer’s cited ICC/ANSI A117.1-2003 and 2010 ADA guidance, the roller centerline is 19 to 44 inches above the finished floor. The dispenser centerline is no farther than 33 inches from the back wall behind the commode, or 7 to 9 inches from the front of the commode. For general utility, the manufacturer recommends a 30-inch roller centerline height and 14 inches from the commode front to the dispenser centerline. Confirm placement against project requirements; this guidance is not a blanket compliance determination. The R-009 theft-resistant spindle guard is available separately.
Manufacturer-stated warranty: one year from the invoice date.
