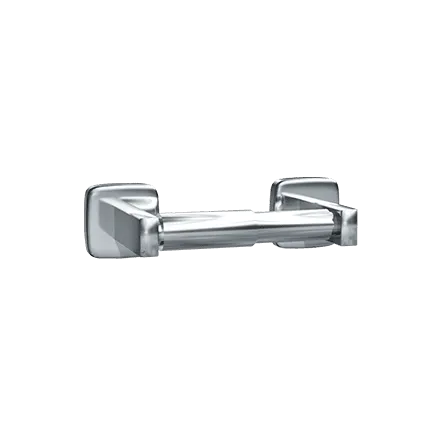

ASI 7305-S Single-Roll Surface-Mounted Toilet Tissue Holder
The ASI 7305-S is a surface-mounted holder for one standard-core toilet tissue roll. Its Type 304 stainless steel has a satin finish, with a chrome-plated roller and concealed wall bracket.
Specifications and options
- Satin-finish Type 304 stainless steel with a chrome-plated roller.
- Holds one 1800-sheet standard-core roll.
- Includes 18-gauge steel mounting plates; the bracket is concealed after installation.
- Optional Model R-009 theft-resistant spindle guard is ordered separately.
- Manufacturer lists a one-year warranty from invoice date.
Installation notes
Use #10 self-threading screws or other suitable mounting hardware (not included), selected for the wall conditions; hang the post and flange assemblies on the mounting plates and tighten the set screws. For general utility, the manufacturer recommends a roll centerline 30 inches above finished floor and 14 inches from the front of the commode. Its separate accessibility installation guidance specifies a position 7–9 inches in front of the toilet and a dispenser center 15–48 inches above finished floor; confirm the applicable requirements for the project.
