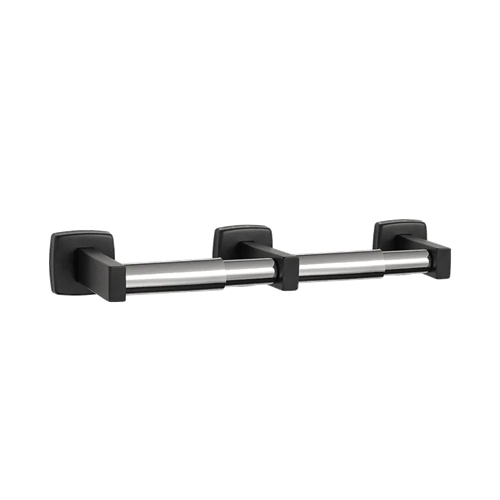

ASI 7305-2-41 Double Toilet Tissue Holder, Surface Mounted
The ASI 7305-2-41 is a surface-mounted double toilet tissue holder for two standard-core rolls. It is made of Type 304 stainless steel with a matte black powder-coated finish and chrome-plated rollers.
Specifications and operation
- Capacity: two standard-core rolls, up to 6 inches (152 mm) in diameter; the product overview specifies 1,800-sheet rolls.
- Overall dimensions: 13-1/2 inches wide × 2 inches high × 3-7/8 inches deep (343 × 51 × 98 mm).
- Includes 18-gauge steel mounting plates; a heavy-gauge concealed bracket mounts the holder to the wall.
- Spring-loaded spindles rotate freely and retain the rolls until their cores are removed.
- A theft-resistant spindle guard is available separately as Model R-009.
- Warranty: one year from the invoice date.
Mounting guidance
Mount the plates through their provided holes using #10 self-threading screws into suitable prepared wall mountings, or use other suitable mounting hardware for the wall conditions. Screws and mounting hardware are by others. Hang the post and flange assemblies on the plates and tighten the set screws.
For general utility, ASI recommends positioning the roll centerline 30 inches above the finished floor and 14 inches from the front of the commode to the dispenser centerline. The manufacturer's listed guidance for ICC/ANSI A-117.1-2003 and the 2010 ADA Accessibility Standards specifies a roller centerline 19 to 44 inches above the finished floor, with the dispenser centerline no farther than 33 inches from the back wall behind the commode or between 7 and 9 inches from the front of the commode. Placement depends on the installation conditions; consult the spec sheet and applicable requirements.
