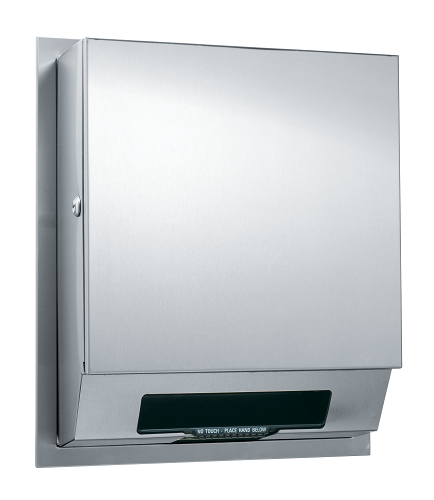

ASI 68523A-4 Simplicity Collection Semi-Recessed Automatic Roll Towel Dispenser
The ASI 68523A-4 is a battery-operated, proximity-sensing roll towel dispenser for semi-recessed installation. Its 4-inch collar/frame accommodates the semi-recessed mounting configuration, and stub-roll capability lets dispensing continue when a full roll is loaded alongside a partial roll.
Verified product details
- Construction and mounting: Type 304 stainless steel with satin finish; semi-recessed mounting with 4-inch collar/frame. Overall dimensions are 17-1/4 inches wide by 20-5/16 inches high by 9-13/16 inches deep.
- Roll capacity: Fits a standard 8-inch roll up to 800 feet long and dispenses one preset towel length per activation.
- Owner settings: Three three-position switches set towel length, delay, and economy.
- Power: Uses four D-size batteries, not included. An LED indicates sensing and battery condition.
- Access and refill: The locking door helps prevent unauthorized access and roll removal. Unlock it to replace an empty or partially used roll; batteries and towel supply are replenished manually.
Wall opening and installation
Provide a minimum rough wall opening of 15-1/2 inches wide by 19 inches high by 4-1/8 inches deep. For drywall, provide adequate in-wall reinforcement; suitable anchors and fasteners for other wall conditions are by others. ASI's installation guidance says to place the top edge of the towel dispenser opening no higher than 48 inches above finished floor for the specified accessibility guidance only when clear-floor reach access is provided; local requirements may call for a 40-inch maximum. For general utility, ASI gives a 49- to 56-inch range. Confirm project conditions and applicable codes before locating the unit.
