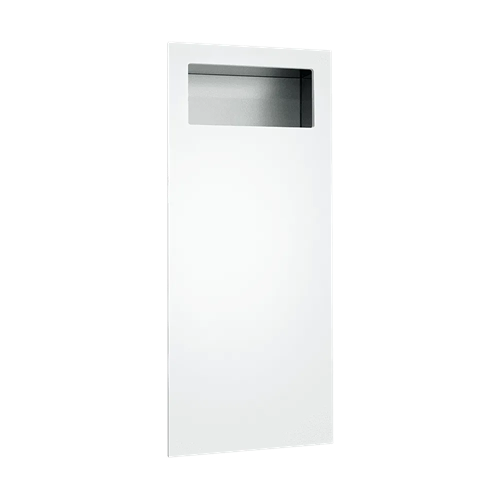

ASI 6474-00 Piatto Completely Recessed Waste Receptacle
The ASI 6474-00 is a 12-gallon, completely recessed washroom waste receptacle with a white phenolic door. Its concealed hardware and upper waste opening preserve the flush-to-wall Piatto design; waste is removed manually.
Specifications and installation
- Capacity: 12 gal. (46 L); waste enters through the opening in the upper section.
- Door and frame: White Formica 949 phenolic door with a Type 304 stainless steel frame and concealed hardware.
- Door operation: Field-adjustable furniture-style hinges and an internal spring-loaded latch.
- Cabinet dimensions: 17-1/4 in. W x 40 in. H x 6-9/16 in. D.
- Minimum finished wall opening: 17-5/16 in. W x 40-1/16 in. H x 6-11/16 in. D.
- Mounting: Install in a wall recess using four #10 x 1-1/2-in. self-threading pan-head screws through concealed mounting holes; screws are by others.
For its 2010 ADA Accessibility Standards installation guidance, ASI specifies that the center of the waste opening be no higher than 48 in. above the finished floor. Empty the receptacle manually as maintenance needs dictate. Piatto products are made to order and are not returnable.
