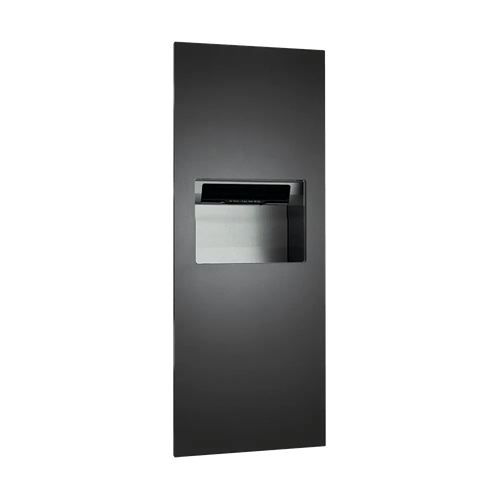

ASI 64696AC-41 Piatto Completely Recessed Automatic Roll Paper Towel Dispenser and Waste Receptacle
The ASI 64696AC-41 Piatto combines proximity-sensor roll towel dispensing with a manually emptied 9.9-gallon waste receptacle in a completely recessed unit with a matte black phenolic door. Field-adjustable furniture-style hinges, an internal spring-loaded latch, and concealed hardware maintain the flush design.
Power note: This listing identifies the unit as AC powered, while the supplied ASI sheet for base model 64696A-41 specifies four D-size batteries (not supplied). Confirm the power configuration before ordering.
Roll capacity and operation
- Holds one standard roll up to 8 inches in diameter, 8 inches wide, and 800 feet long, plus an 8-inch-wide stub roll up to 4 inches in diameter.
- Automatically changes from the stub roll to the main roll when the stub is finished if the feed tabs are properly engaged.
- Dispenses a selected towel length when hands enter the sensor zone. Owner-set length, delay, and paper-saver switches control dispensing.
- The waste receptacle holds 9.9 gallons (37.3 L) and is emptied manually.
Dimensions and installation
The unit measures 16-1/16 inches W x 41-1/4 inches H x 9-1/16 inches D. The minimum finished wall opening is 16-1/8 inches W x 41-5/16 inches H x 10-5/8 inches D. The cabinet and frame are Type 304 stainless steel. Installation uses eight #10 x 1-1/2-inch self-threading pan-head screws through concealed mounting tabs; screws are supplied by others. The ASI sheet's 2010 ADA installation guidance places the towel outlet no higher than 48 inches above finished floor. For general utility, it specifies mounting the bottom of the unit 30-3/4 inches above finished floor and positioning the top of the towel dispenser opening between 49 and 56 inches above finished floor. Refill by opening the door and replacing an empty or partially used roll; empty the waste receptacle manually.
Note: ASI Piatto™ products are made to order and are not returnable.
