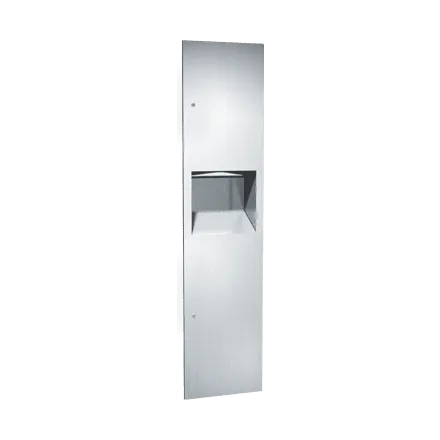

ASI 64676 Simplicity Recessed Paper Towel Dispenser and Waste Receptacle
The ASI 64676 is a manually operated, recessed combination unit with an adjustable guide for C-fold, multi-fold, or single-fold paper towels and a 7-gallon (26.5 L) waste receptacle.
Capacity, construction, and fit
- Towel capacity: 600 C-fold, 800 multi-fold, or 1,100 single-fold towels.
- Type 304 stainless steel with satin finish; concealed multi-staked hinge.
- Two tumbler locks secure the full-face door over the compartments.
- Overall dimensions: 13 inches wide by 55 inches high by 6-1/2 inches deep.
- Required rough wall opening: 11-1/2 inches wide by 53-1/2 inches high by at least 6 inches deep.
Installation and servicing
Install in a wall recess using #10 self-threading screws (by others) through the concealed mounting holes. Manufacturer guidance for the 2010 ADA Accessibility Standards specifies a towel-dispenser-slot centerline no higher than 48 inches above the finished floor. The top of the rough wall opening is 3/4 inch below the top of the unit.
Towels are manually withdrawn through the slot. The adapter supports feeding until the supply is depleted, including when a partial load remains during reloading. Unlock the door to refill an empty or partially empty towel supply. Replenish towels and empty the waste receptacle manually according to maintenance needs.
