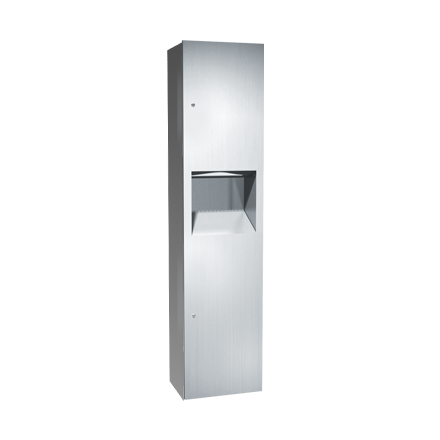

ASI 64676-9 Surface-Mounted Paper Towel Dispenser and Waste Receptacle
The ASI 64676-9 is a manual Simplicity combination unit for surface-mounted restroom installations. It accepts C-fold, multi-fold, or single-fold towels and pairs the dispenser with a 7-gallon waste receptacle.
Specifications and operation
- Towel capacity: 600 C-fold, 800 multi-fold, or 1,100 single-fold; an adjustable guide accommodates the selected fold.
- Waste capacity: 7 gallons (26.5 L); the receptacle is emptied manually as maintenance needs require.
- Type 304 stainless steel with satin finish and a stainless steel surface-mounting collar.
- Overall dimensions: 13 inches wide by 55 inches high by 6-1/2 inches deep.
- A full-face locking door with two tumbler locks covers the compartments. Towels are manually withdrawn; unlock the door to refill. The towel adapter supports feeding through depletion and after a partial-load refill.
Check available wall area against the overall dimensions when selecting this surface-mounted model. The manufacturer lists a one-year warranty from the invoice date.
