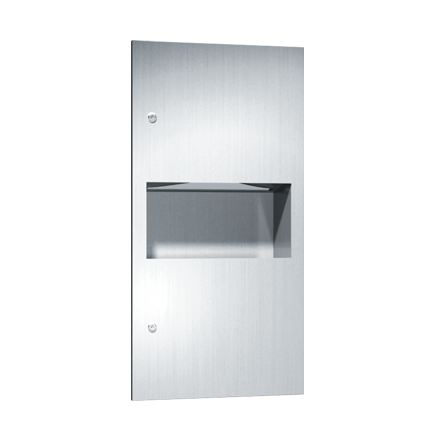

ASI 64623 Simplicity Recessed Paper Towel Dispenser and Waste Receptacle
The ASI 64623 is a recessed combination dispenser and waste receptacle suited to smaller washrooms with less space and traffic. It holds 350 C-fold or 475 multi-fold towels and includes a 2.2-gallon (8.4 L) stainless steel waste receptacle.
Capacity and construction
- Towel capacity: 350 C-fold or 475 multi-fold paper towels.
- Waste capacity: 2.2 gallons (8.4 L); the removable receptacle is emptied manually as maintenance needs require.
- Type 304 stainless steel with a #4 satin finish on exposed surfaces. A tumbler lock holds the door closed and prevents unauthorized access or removal.
- Overall dimensions: 14-1/4 inches wide by 28 inches high by 4-3/4 inches deep.
- Towels self-feed until the supply is depleted, and feeding continues when the unit is reloaded with a partial load.
Installation and servicing
Plan for a rough wall opening of 12-3/4 inches wide by 26-1/2 inches high by at least 4-1/4 inches deep. The top of the opening should be 3/4 inch below the top of the unit. Install in the wall recess using #10 self-threading screws (by others) through the concealed mounting holes.
