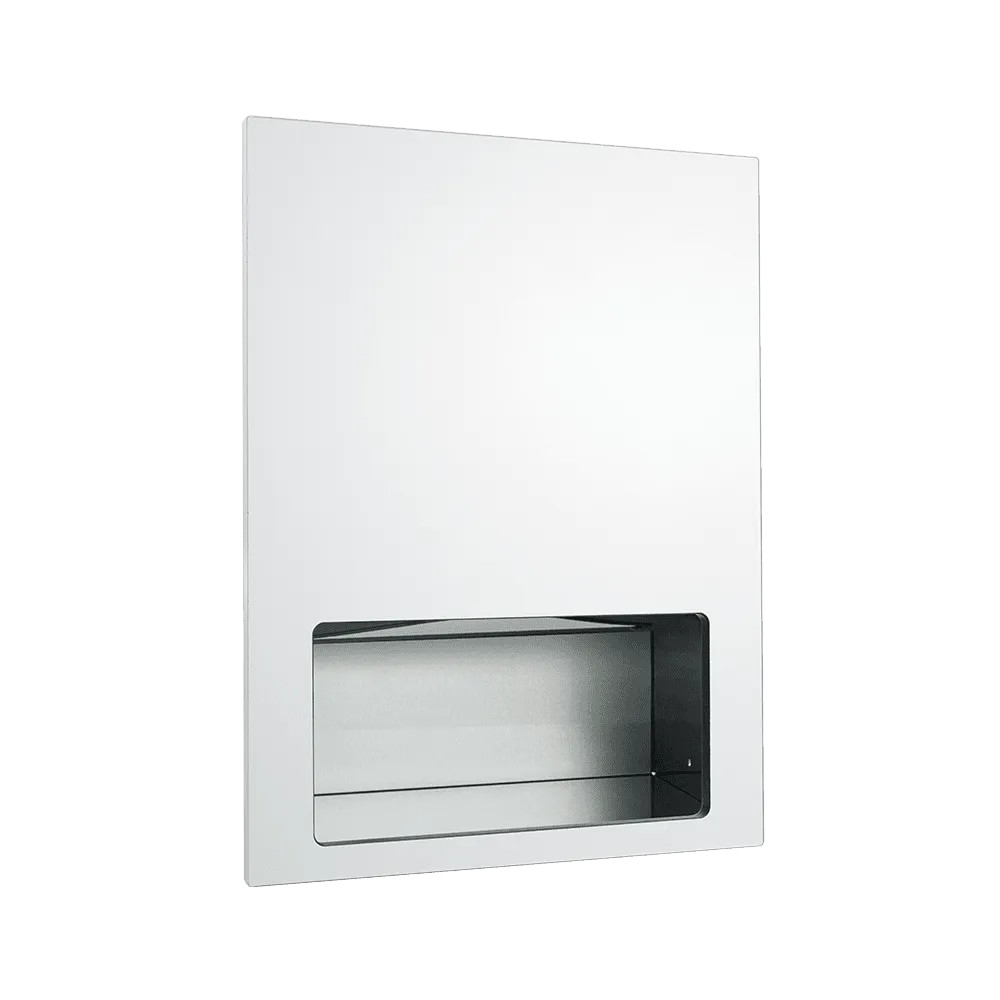

ASI 6457-00 Piatto Completely Recessed Paper Towel Dispenser
The ASI 6457-00 is a manual, pull-type dispenser designed to recess completely into the wall with no protrusion. Its white phenolic door, field-adjustable furniture-style hinges, and concealed spring-loaded latch give the cabinet a clean front; the frame is Type 304 stainless steel. It holds 350 C-fold or 475 multi-fold towels. Towels self-feed until the supply is depleted, and a partial load can be added without interrupting feeding.
Capacity and specifications
- Capacity: 350 C-fold towels or 475 multi-fold towels.
- Overall dimensions: 12-3/4 inches wide x 17-1/4 inches high x 4-9/16 inches deep.
- Minimum finished wall opening: 12-13/16 inches wide x 17-5/16 inches high x 4-3/4 inches deep.
- The furniture-style hinges are field-adjustable; the latch and other hardware are concealed.
Recess installation and loading
Mount in the wall recess through the concealed adjustable tabs using four #10 x 1-1/2-inch self-threading pan-head screws (by others). For general utility installation, the manufacturer specifies mounting the bottom of the unit 50 inches above the finished floor. Its cited ADA installation guidance specifies positioning the towel-dispensing outlet no higher than 48 inches above the finished floor; this is manufacturer guidance, not a blanket compliance determination. The locking door prevents unauthorized access or towel removal. A partial towel load can be added in place while the dispenser continues to feed.
ASI Piatto products are made to order and are not returnable.
