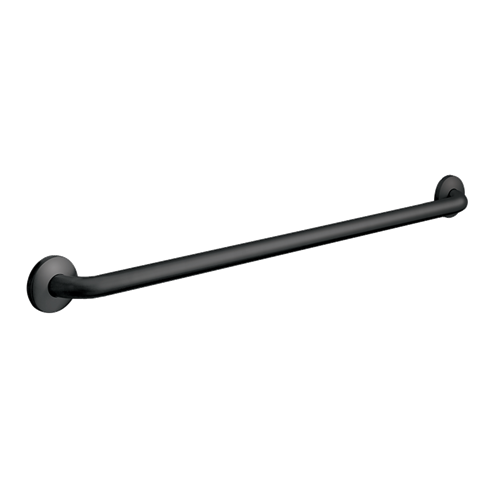

ASI 3801-36-41 Straight Grab Bar, 36-Inch, Matte Black
The ASI 3801-36-41 is a surface-mounted, 36-inch straight grab bar with smooth 1-1/2-inch outside-diameter tubing and a matte black powder-coated finish. Its snap-on cover conceals the mounting screws.
Specifications
- 36-inch length; 1-1/2-inch outside-diameter, 18-gauge Type 304 stainless steel tubing.
- Smooth tubing surface; matte black powder-coated finish.
- Surface-mounted, 1/8-inch-thick Type 304 stainless steel flange, 3-1/8 inches in diameter, with two screw holes and three locking dimples.
- 22-gauge Type 304 stainless steel cover snaps over the flange to conceal the screws.
Installation and care
Use the bar to mark and pre-drill the mounting holes. Two #10 self-threading flat- or oval-head screws, or another suitable fastener system, are required and are by others. Provide appropriate anchoring and wall backing for site conditions before finishing the wall; anchors are available from ASI but must be specified separately.
ASI's installation guidance for the cited accessibility standards places the top of the bar 33 to 36 inches above the finished floor. This is manufacturer guidance; wall construction and the installed mounting system are critical to the result, so this guidance is not a blanket compliance guarantee.
Clean accessible surfaces with mild liquid soap, then wipe and dry. Do not use abrasive powders or pads, toilet or tile cleaners, ammonia solutions above 1% by volume, acids, lye, or enzyme-containing solutions. In shower areas, provide ventilation to remove excess humidity.
