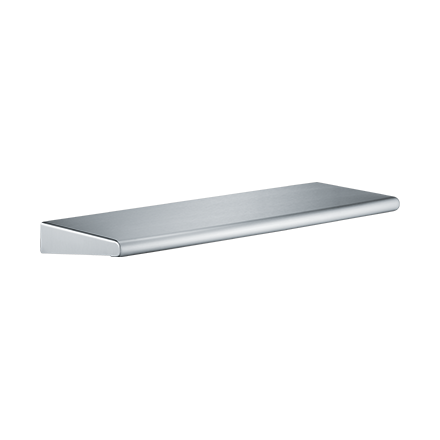

ASI 20692-672 Roval Surface-Mounted Stainless Steel Shelf
The ASI 20692-672 is a 72-inch-wide, 6-inch-deep Roval shelf for surface mounting on a wall or partition. It is fabricated from 18-gauge Type 304 stainless steel with a satin finish and has a gently radiused 3/4-inch edge. The shelf is suitable for wet (self-contained) or dry materials storage.
Specifications and mounting
- Dimensions: 72 inches wide by 6 inches deep.
- Material and finish: 18-gauge Type 304 stainless steel with a satin finish.
- Edge: Gently radiused, 3/4 inch.
- Mounting: Use the rear support bracket’s six keyholes and one locking hole to mount the shelf to a wall or partition. Use #12AB-14 or #12BP-14 [M6] self-threading pan-head screws, or other appropriate fasteners. Fasteners are by others.
- Support: Provide adequate in-wall blocking or other reinforcement for the shelf and its intended load. The manufacturer does not specify a load rating.
Placement guidance
For installation in accordance with the 2010 ADA Accessibility Standards, the manufacturer specifies a shelf-top height between 32 and 48 inches above finished floor (AFF). Typical general-utility placement is 42 inches AFF or 18 inches above a washbasin. These are manufacturer guidelines, not a blanket compliance determination.
