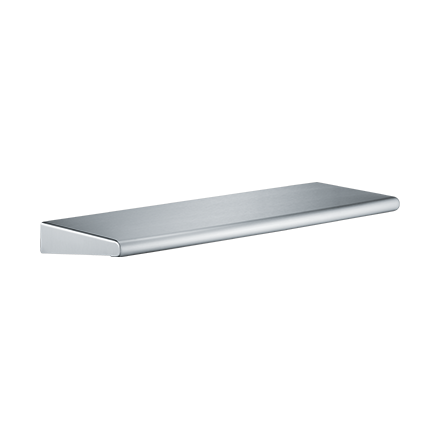

ASI 20692-660 Roval Surface-Mounted Shelf
The ASI 20692-660 is a 6-inch-deep by 60-inch-wide Roval shelf for surface mounting. It is fabricated from 18-gauge Type 304 stainless steel with a satin finish and a 3/4-inch gently radiused edge that complements the curves of the ASI Roval Collection. The shelf is suitable for wet (self-contained) or dry materials storage.
Specifications and installation
- Dimensions: 6 inches deep by 60 inches wide.
- Construction: 18-gauge Type 304 stainless steel with a satin finish.
- Edge: 3/4-inch gently radiused edge.
- Mounting: Surface-mount to a wall or partition through the rear support bracket’s keyholes and locking hole. Use #12AB-14 or #12BP-14 [M6] self-threading pan-head screws, or other appropriate fasteners; fasteners are by others.
- Support: Provide adequate in-wall blocking or other reinforcement for the shelf and its intended load.
- Warranty: One year from date of invoice.
For installation in accordance with the 2010 ADA Accessibility Standards, ASI specifies a shelf-top height between 32 and 48 inches above finished floor. Typical general-utility placement is 42 inches above finished floor or 18 inches above a washbasin. Other widths are available in the 20692 series.
