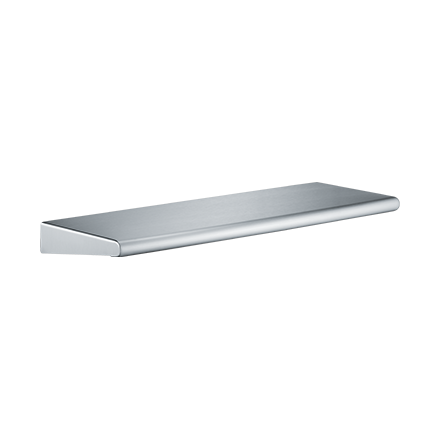

ASI 20692-624 Roval Surface-Mounted Stainless Steel Shelf
The ASI 20692-624 is a 6-inch-deep by 24-inch-wide wall-mounted shelf for wet, self-contained or dry materials storage. Its 18-gauge Type 304 stainless steel construction, satin finish, and 3/4-inch gently radiused edge are part of the ASI Roval Collection design.
Specifications and installation
- Dimensions: 6 inches deep by 24 inches wide.
- Construction: 18-gauge Type 304 stainless steel with satin finish.
- Edge: 3/4-inch gently radiused profile.
- Mounting: surface mount through two rear-bracket keyholes and a locking hole; appropriate fasteners are supplied by others.
- Support: provide adequate in-wall blocking or other reinforcement for the shelf and its intended load. The manufacturer does not provide a load rating in the supplied specification.
For manufacturer installation guidance referencing the 2010 ADA Accessibility Standards, position the shelf top between 32 and 48 inches above the finished floor; this placement guidance alone does not establish compliance. ASI lists 42 inches above the floor, or 18 inches above a washbasin, as typical general-utility placement. The manufacturer specifies a one-year warranty from the invoice date.
