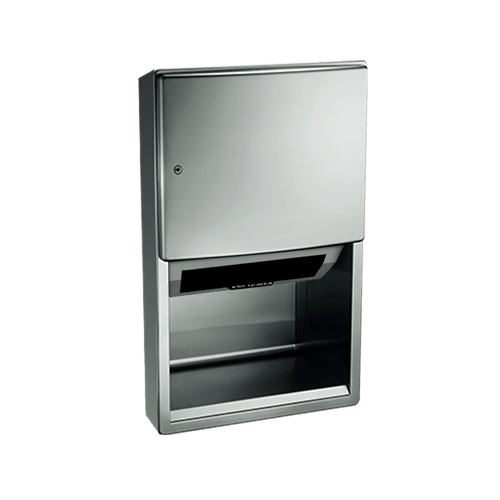

ASI 204523A-9 Roval Automatic Roll Paper Towel Dispenser
This no-touch, battery-operated dispenser feeds one towel length when hands enter the sensor zone. The owner sets towel length, delay, and economy using three three-position switches. It accommodates roll towels up to 800 feet long. Construction is 22-gauge Type 304 stainless steel with a satin finish and concealed multi-staked piano hinge; the surface-mounted unit includes a stainless steel collar.
When a partial roll remains, load a full roll and transfer the partial roll to the stub-roll position so dispensing can continue. Refill by unlocking the door and replacing the roll. The LED indicates sensing and battery condition; the locking door prevents unauthorized access and roll removal. Power is four D-size batteries, which are not included.
Installation
Mount through the concealed holes using #10 self-threading screws, which are by others. For drywall, provide adequate in-wall reinforcement; for other wall conditions, provide suitable anchors, also by others. The unit measures 17-3/8 inches wide by 27-3/4 inches high by 11-11/16 inches deep. Follow applicable local requirements when setting the dispensing-slot height; the manufacturer provides ADA-related installation guidance in the spec sheet.
