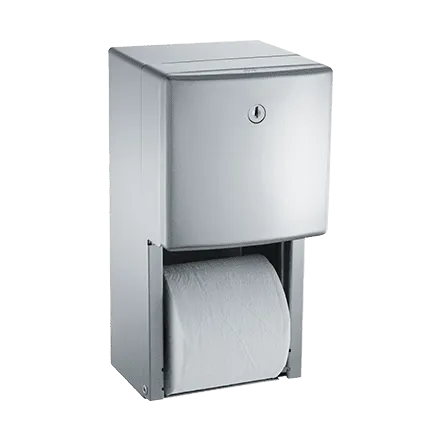

ASI 20030 Roval Twin Hide-A-Roll Toilet Tissue Dispenser
This surface-mounted dispenser holds two rolls up to 5-1/4 inches (133 mm) in diameter, with a stated double-roll capacity of 3,600 sheets. The top roll automatically drops into position after the bottom roll is used up. Its cabinet and mechanism are Type 304 stainless steel with a satin finish; theft-resistant spindles have integral plated steel endpins.
Installation and servicing
Mount to a wall or partition using four 1/4 x 1-inch (M6 x 25) pan-head self-threading screws through the rear slots; screws and suitable wall preparation are by others. The top keyhole slots support hanging on pre-installed screws, and the lower horizontal slots allow adjustment. Reloading instructions are printed inside the door. Empty rollers cannot be removed until the door is unlocked with the key.
Overall dimensions are 6-1/16 inches W x 12-1/8 inches H x 6-1/2 inches D (154 x 308 x 165 mm). For the manufacturer's stated 2010 ADA and 2015 ABA installation guidance, position the dispenser centerline 7 to 9 inches (178 to 229 mm) in front of the toilet and the bottom-roll axis 15 to 48 inches (381 to 1,219 mm) above the finished floor.
