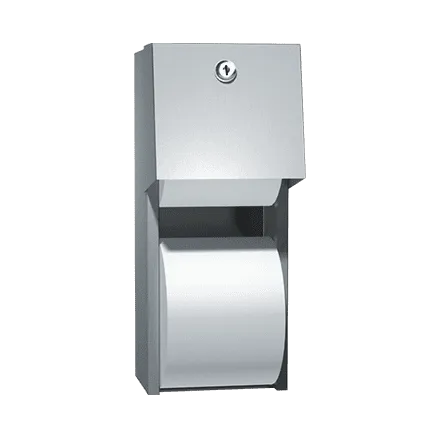

ASI 0030 Twin Hide-A-Roll Surface-Mounted Toilet Tissue Dispenser
The ASI 0030 is a surface-mounted, dual-roll toilet tissue dispenser for facilities seeking automatic roll changeover: when the bottom roll is used up, the upper roll drops into position. It holds two rolls up to 5-1/4 inches (133 mm) in diameter, with a stated capacity of 1,800 sheets.
Specifications
- Type 304 stainless steel with satin finish; 18-gauge door and 22-gauge cabinet body and dispensing mechanism.
- Theft-resistant spindles and a tumbler lock keyed alike to other ASI washroom equipment.
- Overall dimensions: 6 inches wide by 12 inches high by 6-1/2 inches deep.
- Surface mounts to a wall or partition using four 1/4-inch screws through the rear slots; screws and suitable wall preparation are by others.
Installation and refill
For the manufacturer's stated accessibility installation guidance, position the bottom roller axis 15 to 48 inches above the finished floor and the dispenser centerline 7 to 9 inches in front of the toilet. Reloading instructions are printed inside the door. The top roll drops into use after the bottom roll is depleted; empty rollers cannot be removed until the door is unlocked with the key.
