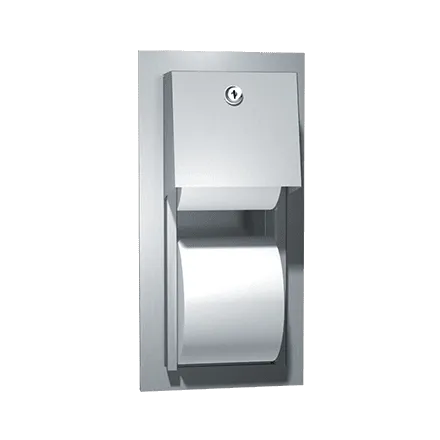

ASI 0031 Recessed Twin Hide-A-Roll Toilet Tissue Dispenser
The ASI 0031 is a recessed, two-roll toilet tissue dispenser with a concealed reserve roll. It holds two rolls up to 5-1/4 inches in diameter (1,800 sheets); when the bottom roll is used up, the top roll drops into position.
Capacity, construction and dimensions
- Overall dimensions: 8 inches wide x 14 inches high x 6-1/2 inches deep.
- Minimum rough wall opening: 6-1/4 inches wide x 12-1/4 inches high x 3-3/8 inches deep.
- Type 304 stainless steel with satin finish.
- Provided with a flange for recessed mounting; theft-resistant spindles and a tumbler lock are keyed alike to other ASI washroom equipment.
Installation and reloading
Install with four #10 self-threading screws, supplied by others. For the manufacturer's stated positioning guidance, place the dispenser centerline 7 to 9 inches in front of the toilet and the roll axis 15 to 48 inches above the finished floor. Reloading instructions are printed inside the door. Empty rollers cannot be removed until the door is unlocked with the key.
