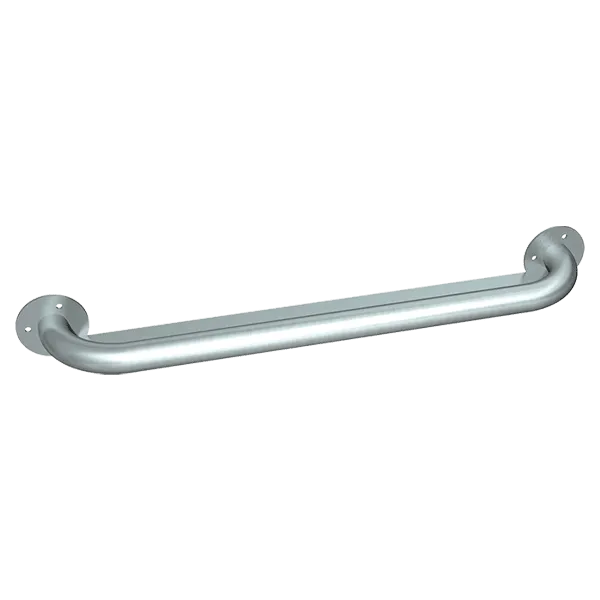

ASI 164 Front-Mount Security Grab Bar, 36 Inch
The ASI 164 is a 36-inch front-mount security grab bar with type 304 stainless steel, a satin finish, and a welded security closure plate. The manufacturer identifies the 12-gauge closure plate as an anti-ligature feature and specifies a built-in drainage system.
Specifications
- 36-inch (914 mm) length; 1-1/2-inch (38 mm) diameter tubing
- Type 304 stainless steel; all exposed surfaces have a satin finish
- 18-gauge tubing; 1/8-inch (3 mm) flanges welded to the tube
- 12-gauge (0.105-inch / 2.7 mm) type 304 stainless steel closure plate welded beneath the bar
- Front mount; each flange has three holes for 1/4-inch (6 mm) diameter screws
Installation and care
Surface-mount the bar to a finished wall using six suitably sized fasteners. The manufacturer suggests 1/4-20 Pin Torx® button-head machine screws of adequate length; screws and suitable wall anchors, prepared mountings, or other mounting hardware are by others and must suit wall conditions. Wall attachment and adequately sized fasteners are critical to the grab-bar system's load performance. For the manufacturer's stated 2010 ADA positioning guidance, install with the top of the bar 33 to 36 inches above the finished floor; this positioning guidance is not a blanket compliance guarantee.
Clean regularly with a soft cloth and mild detergent, then wipe with water and dry. Avoid muriatic acid, caustic or abrasive materials, and harsh detergents. Manufacturer warranty: one year from invoice date.
