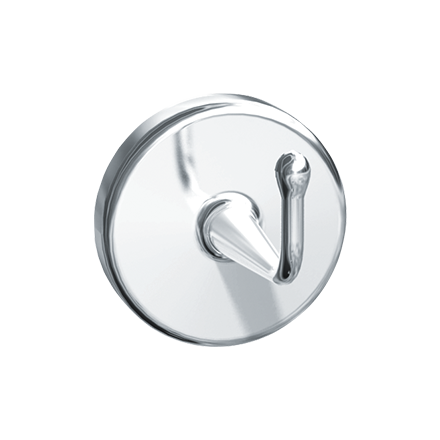

ASI 0751 Heavy-Duty Concealed-Mount Robe Hook
The ASI 0751 is a surface-mounted robe hook made of satin-finish chrome-plated brass. Three stainless steel set screws secure the hook to its wall bracket.
Specifications and installation
- Dimensions: 2-3/4 inches wide by 2-3/4 inches high, with a 3-1/4-inch projection.
- Hook-to-bracket attachment: Three 1/4-28 cone-point stainless steel hex socket set screws are spaced around the flange. Tighten them with a 1/8-inch hex wrench.
- Wall attachment: The surface-mounted bracket uses #10 self-threading pan-head screws, supplied by others to suit wall conditions. The manufacturer specifies a mounting configuration capable of supporting 181 pounds of downward force. Select and install wall fasteners accordingly and follow local building codes.
- Installation height: The manufacturer’s cited 2010 ADA guidance specifies a hook centerline no higher than 48 inches above the finished floor. Confirm the requirements applicable to your project.
Cleaning and warranty
Clean regularly with a soft cloth moistened with mild detergent, follow with a water-dampened cloth, and dry with a clean cloth. The manufacturer lists a one-year warranty from the invoice date.
