ASI 0661-T Velare BTM Mirror Cabinet with Paper Towel and Soap Dispensers

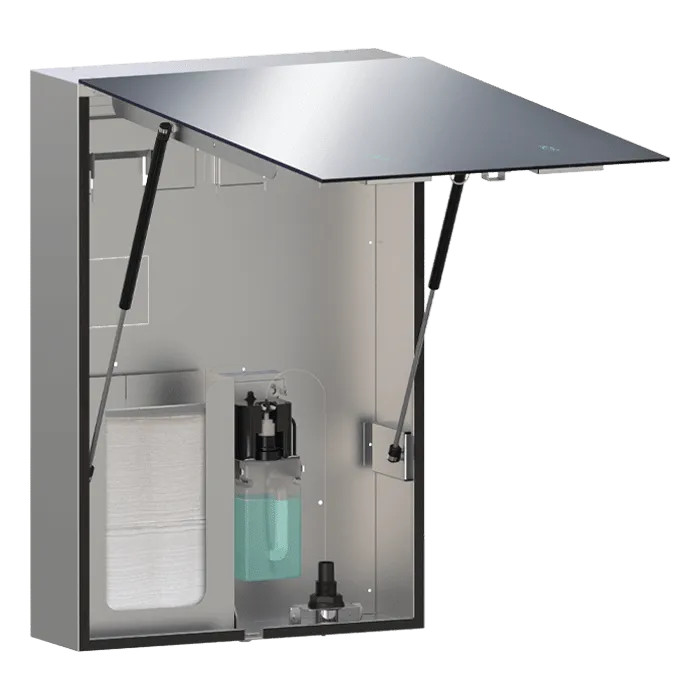

The ASI 0661-T is a surface-mounted Velare Behind the Mirror system with a frameless mirror, hands-free liquid soap dispenser, and paper towel dispenser rated for 500 towels. Unlike the 0661-2, this model has a towel dispenser instead of a high-speed hand dryer.
Features and dimensions
- Type 304 stainless steel cabinet with satin finish; overall dimensions are 23-5/8 x 35-7/16 x 7-9/16 inches (600 x 900 x 192 mm).
- 1/4-inch (6 mm) frameless tempered-glass mirror conforming to ASTM C-1048, with pencil edges and eased corners, an intermediate stainless steel stiffener, and a stainless steel back plate with integral welded support mounts. Backlit icons identify the functions at the cabinet’s bottom panel.
- The mirrored door uses a concealed, full-width 3/16-inch (4.8 mm) piano hinge, tumbler lock and key, and twin damped gas springs. The springs assist opening from 15° to 90° and cushion the door at full open and when lowering it to the closed position.
- The dispenser holds up to 500 towels. Use the provided MFTA-2 adapter for Z-fold (multi-fold) towels; remove and store the adapter inside the cabinet when loading C-fold towels. Towels feed from the manually loaded stack until depleted.
- Use liquid soap with viscosity of 100–3,000 cP (mPa·s) and pH 5.5–8.5. Matching filler modules are available as spacers between cabinets.
- Mirror backlights operate on 100–240 VAC through a concealed duplex outlet behind the cabinet (by others).
Installation and maintenance
Prepare appropriate wall reinforcement and electrical service before installation. ASI suggests positioning the cabinet bottom 16–20 inches (406–508 mm) above the vanity top. The twelve mounting screws and two security-locking screws are supplied by others. Refill the soap and replenish the towel stack as maintenance requires. Consult the guides for complete installation and care instructions.
