ASI-10-0661-2

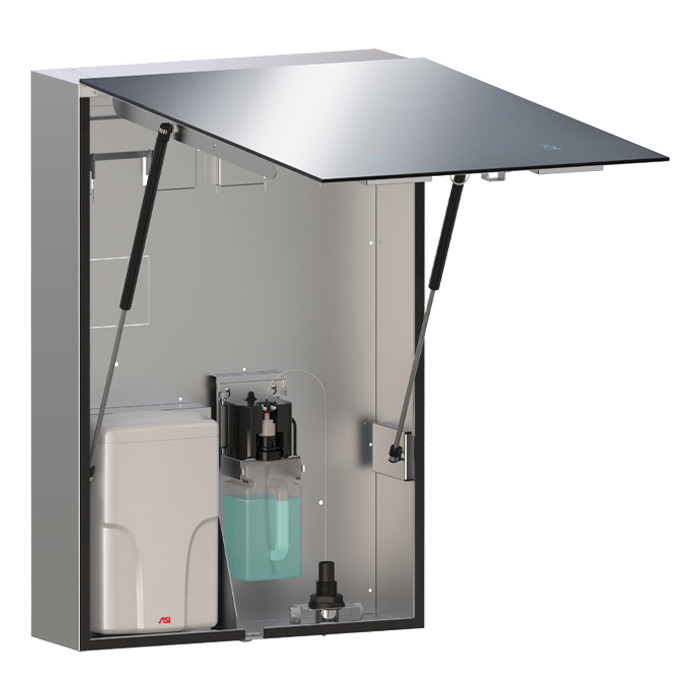

ASI's Velare™ Behind the Mirror (BTM) is designed for elegance and safety in mind, concealing consumables in a cabinet made from type 304 stainless steel. The cabinet features a mirrored door with backlit icons that indicate functions provided from the bottom panel of each module. Mirror is made from 1/4″ (6mm) thick frameless tempered glass conforming to ASTM C-1048 with pencil edges and eased corners with SS sheet intermediate stiffener and SS back plate with integral welded support mounts, hinge and lock keeper.
The mirrored door is attached to the cabinet using a full width 3/16″ diameter (Ø4.8) concealed piano hinge and is secured shut using a tumbler lock and key. Support for mirror door is provided by twin damped gas springs to assist opening from 15° to 90° with soft-stop cushion at full open and when lowering to full closed position for locking.
This wall mounted stainless steel cabinet conceals a hands-free automatic liquid soap dispenser with a .4 gal (1.5 L) capacity and a high-speed hand dryer (208-240V) equipped with a HEPA filter.
Mirror backlights operate on 100 – 240 VAC provided to quad (double-duplex) outlet (by others) concealed behind the cabinet into which a standard appliance power cord and AC adapters are plugged into at installation.
Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
- Viscosity Range (mPa·s or cP): 100 – 3k
- pH Range: 5.5 ~ 8.5
Matching filler modules (FM) are available as spacers between cabinets.
Product Overview
The ASI 0661-2 Velare BTM System combines functionality with sophisticated design, ideal for commercial restrooms seeking to optimize space while providing essential hygiene solutions. Its stainless steel construction ensures durability, while the included high-speed hand dryer and liquid soap dispenser contribute to user convenience and compliance with cleanliness standards.
Key Features
- Concealed design maximizes space efficiency in busy restroom environments.
- Durable stainless steel cabinet resists corrosion and wear, ensuring longevity.
- High-speed hand dryer features a HEPA filter for improved air quality.
- Backlit icons clearly communicate functions, enhancing user guidance.
- Soft-close mechanism protects the integrity of the mirrored door during operation.
