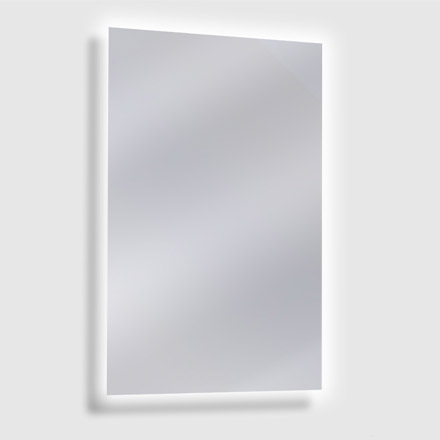

ASI 0640-6036 Frameless Mirror with LED Halo Backlighting
The ASI 0640-6036 is a 60 x 36-inch frameless plate-glass mirror with concealed LED halo lighting. It can be surface mounted horizontally or vertically.
Specifications
- Dimensions: 60 inches wide x 36 inches high.
- Lighting: 5,700 lumens; light color equivalent to 3500K.
- Electrical: 100–240 VAC, 50/60 Hz; 60W at 120V. The hard-wired LED lighting system is UL listed.
- Mirror: 5/32-inch-thick plate glass with a polished edge and an integral concealed aluminum mounting system.
- Power cord: Supplied installed, 39-3/8 inches long, with a 3-prong USA-pattern plug.
- Mounting: Horizontal or vertical, without additional brackets or adaptations to the mounting provisions.
Installation and power
Keyhole slots are provided on the long and short sides of the back frame for hanging on pre-installed pan-head screws. Secure the screws into appropriate wall anchors or blocking selected to support the mirror’s weight. Power is by others; the supplied cord may plug into an appropriate wall outlet concealed by the mounting frame, or the LED system may be hard wired. An external wall switch, by others, controls the on-off function. The mirror face sits 1-3/16 inches from the wall when installed.
