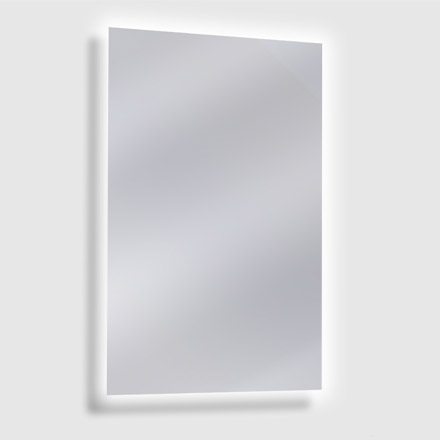

ASI 0640-2436 Frameless Mirror with LED Halo Backlighting
The ASI 0640-2436 is a 24 x 36 inch, surface-mounted frameless mirror with a polished edge, 5/32-inch plate glass, and concealed LED halo lighting. The light color is equivalent to 3500K, and this model is rated at 3500 lumens. Its LED lighting system is UL listed and operates on 100–240 VAC, 50/60 Hz.
Specifications and installation
- Rated power: 35 W at 120 V. LED bulbs have a stated lifespan of up to 50,000 hours.
- The integral concealed mounting system allows horizontal or vertical installation without additional brackets or adaptations.
- Keyhole slots on the long and short sides of the back frame hang on the provided pan-head screws. Use the provided plastic wall anchors or blocking by others, as appropriate for site conditions and the mirror’s weight.
- The power cord is supplied installed and measures 39-3/8 inches, with a 3-prong USA-pattern plug. Power and the outlet or hardwire connection are by others; an external wall switch by others controls on/off operation.
- After installation, the mirror face is 1-3/16 inches from the wall. Warranty: five years from the date of invoice.
