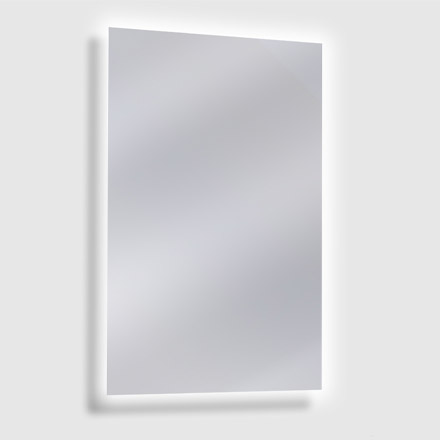

ASI 0640-4836 Frameless 48 x 36-Inch LED Halo Mirror
The ASI 0640-4836 is a surface-mounted, frameless polished-edge mirror measuring 48 x 36 inches, with a 4,980-lumen, 3500K LED halo. It can be mounted horizontally or vertically without additional brackets or changes to its mounting provisions.
Verified product details
- 5/32-inch (4 mm) plate glass with an integral concealed aluminum mounting frame.
- LED lighting operates on 100–240 VAC, 50/60 Hz; the 48 x 36-inch model is rated 35 W at 120 V.
- The supplied power cord is 39-3/8 inches long and has a 3-prong USA-pattern plug. The installation may use an appropriate wall outlet or hard wiring to the LED control circuitry.
- Provide site power and a wall switch (both by others); the switch controls on/off operation.
- Manufacturer lists an LED lifespan of up to 50,000 hours and a five-year warranty from invoice date.
Mounting and power planning
Keyhole slots on the long and short sides of the back frame allow either orientation. Hang the mirror on the supplied pre-installed pan-head screws; use appropriate wall anchors (plastic anchors are provided) or blocking to suit site conditions and support the mirror’s weight. The face of the mirror sits 1-3/16 inches from the wall when installed.
