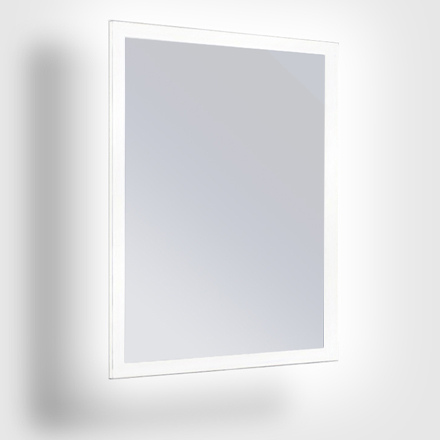

ASI 0641-4836 Frameless Mirror with Frosted Border and LED Blacklight
The ASI 0641-4836 is a 48 x 36-inch frameless mirror with a frosted glass border and concealed LED halo lighting. It can be mounted horizontally or vertically.
Specifications
- Dimensions: 48 inches wide x 36 inches high.
- Lighting: 4,680 lumens; light color equivalent to 3500K.
- Electrical: 100–240 VAC, 50/60 Hz; 35W at 120V. The LED lighting system is UL listed.
- Construction: 5/32-inch plate glass with a polished edge, frosted border, and integral concealed aluminum mounting frame.
- Mounting: Surface mounted; designed for horizontal or vertical installation without additional brackets or adaptations.
- Power: Supplied with an installed power cord and 3-prong USA-pattern plug. Power connection and wall switch are by others.
Installation
Keyhole slots on the long and short sides of the rear frame engage pre-installed pan-head screws. Secure the screws into suitable wall anchors or blocking selected for site conditions and the mirror’s weight. Provide power for plug-in or hardwired connection, and install an external wall switch to control the LED on/off function. The mirror face sits 1-3/16 inches from the wall when installed.
