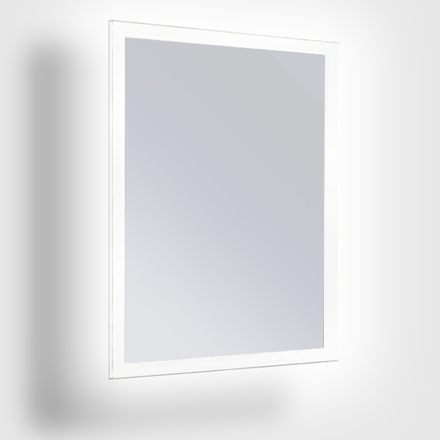

ASI 0641-2436 Frameless Mirror with LED Halo Lighting
The ASI 0641-2436 is a 24 x 36 in. surface-mounted frameless mirror with a frosted glass border and concealed LED halo backlighting. It produces 3,240 lumens with a 3500K-equivalent light color and can be mounted horizontally or vertically.
Specifications and installation
- Dimensions: 24 in. wide x 36 in. high; 5/32 in. thick plate glass.
- Lighting and electrical: UL-listed LED system; 100–240 VAC, 50/60 Hz; 35 W at 120 V.
- Mounting: The integral concealed frame has keyhole slots on its long and short sides. Hang it on the provided pan-head screws, secured into the provided plastic wall anchors or suitable blocking to support the mirror. No additional brackets or mounting adaptations are required for horizontal or vertical installation.
- Power and control: The mirror is supplied with an installed 39-3/8 in. cord and 3-prong USA-pattern plug. Site power and an external on-off wall switch are provided by others; the cord can be plugged into an appropriate wall outlet or the lighting can be hardwired.
- After installation, the mirror face is 1-3/16 in. from the wall. Consult ASI’s Product Care & Maintenance Bulletin for cleaning instructions.
- Warranty: Five years from the date of invoice.
