ASI 0625-1824 Stainless Steel Channel Frame Mirror with Shelf

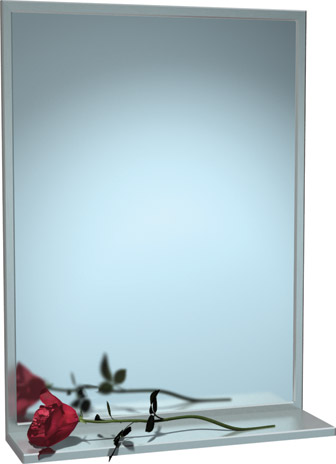

The ASI 0625-1824 is an 18 x 24 inch surface-mounted mirror with a one-piece satin-finish Type 304 stainless steel channel frame that encases the mirror and backing.
Specifications
- Mirror size: 18 x 24 inches; standard glazing is 1/4-inch plate glass.
- Frame: one-piece, 20-gauge Type 304 stainless steel with a satin finish; the 1/2 x 1/2 x 1/2-inch channel has tight mitered corners.
- Shelf: 5 inches deep, 18-gauge stainless steel, welded to the face frame, with returned and hemmed edges.
- Mounting: surface-mounted on two wall brackets and secured with a theft-resistant locking screw.
- Glass warranty: 15 years against silver spoilage from the invoice date.
Mounting and installation
Install the “H” wall brackets level and plumb using #8 or #10 pan-head screws, which are by others. The locking screw is supplied separately and taped to the mirror back; start it before hanging the mirror on the brackets. ASI's installation guidance for the 2010 ADA Accessibility Standards and ABA Standards 2015 specifies that the bottom edge of the reflecting surface should be no higher than 40 inches above the finished floor; confirm placement for the project.
