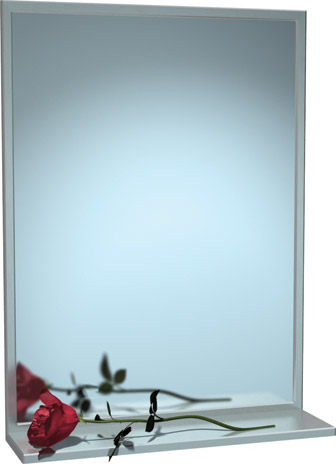

ASI 0625-1620 Chan-Lok Frame Plate Glass Mirror with Shelf, 16" W x 20" H
This surface-mounted mirror has a satin-finish Type 304 stainless steel channel frame and a 5"-deep, 18-gauge stainless steel shelf welded to the face frame. The shelf edges are returned and hemmed. Standard glazing is 1/4" plate glass, warranted against silver spoilage for 15 years from invoice.
Installation notes
Install the wall brackets level and plumb using No. 8 or No. 10 pan-head screws, which are by others. Hang the mirror and tighten the theft-resistant locking screw at the bottom; that screw is supplied separately and taped to the mirror back. ASI's guidance for 2010 ADA Accessibility Standards and ABA Standards 2015 places the bottom edge of the reflecting surface no higher than 40" above finished floor; this is manufacturer guidance, not a blanket compliance determination.
