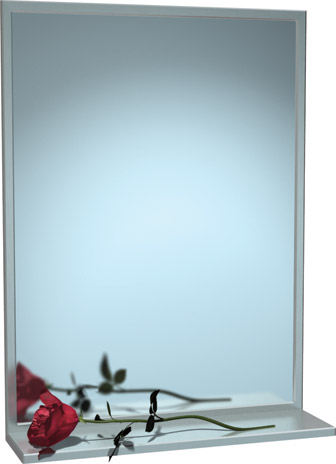

ASI 0625-1820 Chan-Lok Frame Plate Glass Mirror with Shelf
The ASI 0625-1820 is an 18" W x 20" H surface-mounted Chan-Lok mirror with standard plate glass and a welded 5"-deep shelf. Its satin-finish stainless steel frame and hemmed shelf edges suit commercial restroom installations.
Product details
- The frame is Type 304, 18-8 stainless steel, 20 gauge, with a satin finish; a one-piece stainless steel channel encases the mirror and backing.
- The shelf is 18-gauge stainless steel with a satin finish, welded to the face frame, and 5" (127 mm) deep.
- Shelf edges are returned and hemmed for rigidity and safety; the frame has tight mitered corners.
- Standard glazing is 1/4" plate glass, silver-coated and hermetically sealed. The manufacturer warrants against silver spoilage for 15 years from the invoice date.
Surface mounting
Install the wall brackets level and plumb using #8 or #10 pan-head screws (by others). Hang the mirror and tighten the locking screw at the bottom; the screw is supplied separately and taped to the mirror back. The manufacturer advises that, for compliance with the 2010 ADA Accessibility Standards and ABA Standards 2015, the bottom edge of the reflecting surface should be no higher than 40" above finished floor. Confirm project requirements and placement before installation.
