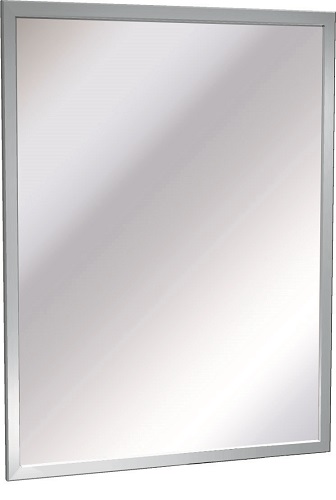

ASI 0600-C2460 Inter-Lok Angle Frame Stainless Steel Mirror
The ASI 0600-C2460 is a 24-inch-wide by 60-inch-high, surface-mounted mirror with a #8 polished Type 304 stainless steel reflective face. Its distinguishing C-variant metal mirror face is paired with a satin-finish Type 304 stainless steel frame.
Model details
- Reflective face: 20-gauge Type 304 stainless steel with a #8 mirror finish; manufacturer-rated image quality is good.
- Frame: roll-formed 18-gauge Type 304 stainless steel, 3/4 x 5/8 inch, with welded corners polished to a uniform satin finish.
- Mounting: surface-mounted on a concealed hanging bracket that locks to the top and bottom of the frame with tamper-proof set screws; the one-piece back plate attaches with a theft-resistant locking device.
Installation guidance
Install the bracket level and plumb using #10 self-threading screws (supplied by others), hang the mirror, then tighten the top and bottom locking screws. For the manufacturer's ADA/ABA placement guidance, the bottom edge of the reflecting surface should be no higher than 40 inches above the finished floor; placement alone does not establish compliance.
