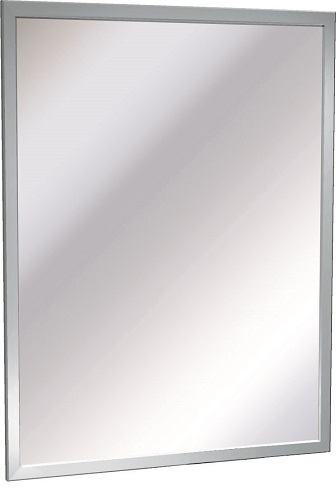

ASI 0600-C2430 Inter-Lok Angle Frame Metal Mirror, 24" W x 30" H
This surface-mounted mirror pairs a Type 304 stainless-steel angle frame, with a 3/4" x 5/8" profile, and the C glazing option: 20-gauge stainless steel polished to a No. 8 mirror finish. The 18-gauge frame has heliarc-welded corners, polished smooth to a uniform satin finish. Its concealed hanging bracket locks to the top and bottom of the frame with tamper-proof set screws; a one-piece back plate attaches to the frame with a theft-resistant locking device.
Installation
Install the bracket level and plumb, then hang the mirror and tighten the top and bottom locking screws. Installation screws are by others. Manufacturer guidance for 2010 ADA Accessibility Standards and 2015 ABA Standards states that the bottom edge of the reflecting surface should be no higher than 40" above the finished floor; confirm applicable project requirements.
