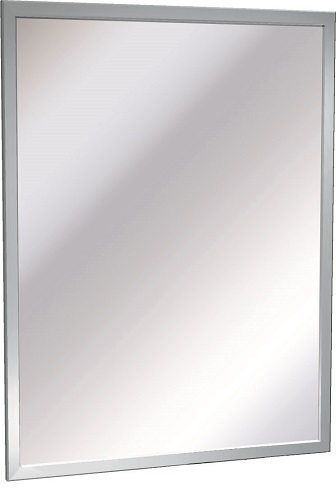

ASI 0600-C2436 Inter-Lok Angle Frame Metal Mirror, 24" W x 36" H
The surface-mounted ASI 0600-C2436 is a 24" wide by 36" high C-configuration mirror with a Type 304 stainless steel reflective panel. The C designation identifies the metal-mirror glazing option, polished to a No. 8 mirror finish and rated Good for image quality by ASI.
Construction and mounting
- Reflective panel: 20-gauge Type 304 stainless steel with a No. 8 mirror finish.
- Frame: roll-formed 18-gauge Type 304 stainless steel, 3/4" x 5/8", with heliarc-welded corners polished smooth to a uniform satin finish.
- A concealed hanging bracket engages the top and bottom of the frame with tamper-proof set screws.
- The one-piece back plate attaches to the frame with a theft-resistant locking device.
Installation
Set the bracket level and plumb using #10 self-threading screws, which are by others. Hang the mirror and tighten the top and bottom locking screws. ASI's installation guidance for the 2010 ADA Accessibility Standards and 2015 ABA Standards says the reflecting surface's bottom edge should be no higher than 40" above the finished floor; verify applicable project requirements.
