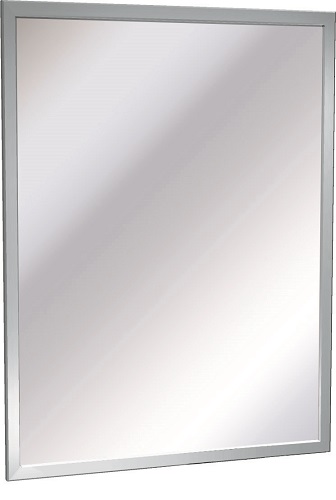

ASI 0600-B2472 Tempered Glass Inter-Lok Angle Frame Mirror
The ASI 0600-B2472 is a 24" W x 72" H, surface-mounted mirror with 1/4" polished tempered glass and a satin-finish Type 304 stainless steel frame.
Model specifications
- The roll-formed frame is 3/4" x 5/8", 18-gauge Type 304 stainless steel; heliarc-welded corners are ground and polished smooth.
- The tempered glass has two coats of silver, an electrolytic copper plating seal, and heavy waterproof paint backing.
- A concealed hanging bracket locks onto the top and bottom of the frame with tamper-proof set screws. A one-piece back plate attaches to the frame with a theft-resistant locking device.
- Installation uses #10 self-threading screws, supplied by others.
Positioning guidance
For the 2010 ADA Accessibility Standards and 2015 ABA Standards guidance cited by ASI, the bottom edge of the reflecting surface should be no higher than 40" above finished floor. Confirm applicable project requirements.
