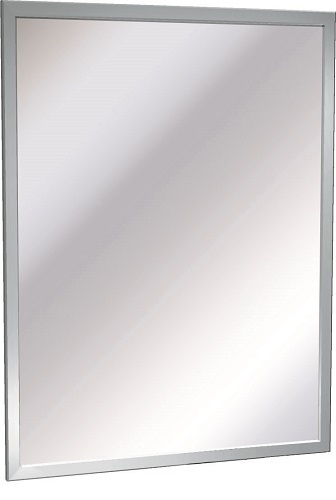

ASI 0600-B2460 Inter-Lok Angle Frame Mirror with Tempered Glass, 24" W x 60" H
This surface-mounted B configuration uses 1/4" polished tempered glass with two coats of silver. The silver is hermetically sealed with copper plating, and the mirror back is protected with heavy waterproof paint. ASI rates this glazing option's image quality as Good. The roll-formed 18-gauge Type 304 stainless steel frame has heliarc-welded corners polished smooth to a uniform satin finish. The frame measures 3/4" x 5/8".
A concealed hanging bracket engages the top and bottom of the frame with tamper-proof set screws. The one-piece back plate attaches to the frame with a theft-resistant locking device.
Installation
Set the bracket level and plumb using #10 self-threading screws, which are by others. Hang the mirror and tighten the top and bottom locking screws. ASI's installation guidance for 2010 ADA Accessibility Standards and 2015 ABA Standards says the reflecting surface's bottom edge should be no higher than 40" above the finished floor; verify applicable project requirements.
