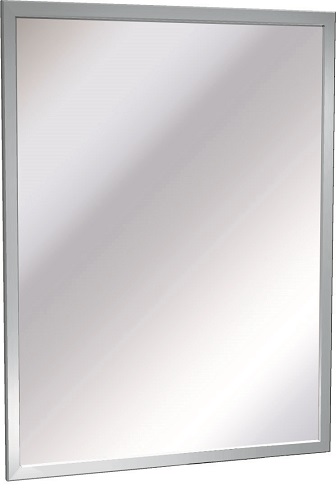

ASI 0600-B2436 Inter-Lok Angle Frame Mirror, Tempered Glass, 24" W x 36" H
This surface-mounted mirror pairs 1/4" (6.4 mm) polished tempered glass with a roll-formed 18-gauge Type 304 stainless steel angle frame measuring 3/4" x 5/8" (19 x 16 mm). The frame corners are heliarc welded, ground, and polished smooth to a uniform satin finish. The tempered glass has two silver coats hermetically sealed with copper plating; the back is protected with waterproof paint.
A concealed hanging bracket locks to the top and bottom of the frame with tamper-proof set screws. The one-piece back plate attaches to the frame with a theft-resistant locking device.
Installation
Install the bracket level and plumb using #10 self-threading screws, which are by others. Hang the mirror and tighten the locking screws at the top and bottom. The manufacturer’s accessibility guidance specifies that the bottom edge of the reflecting surface should be no higher than 40" above finished floor; verify the complete installation against project requirements.
