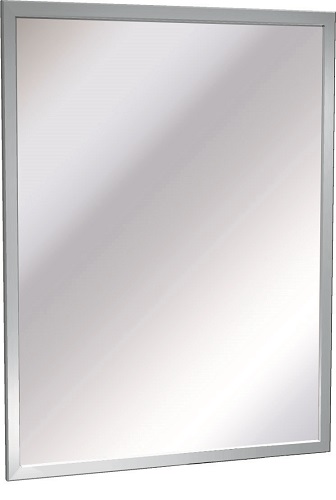

ASI 0600-B1824 Inter-Lok Angle Frame Mirror with Tempered Glass
This 18" W x 24" H surface-mounted mirror uses 1/4" (6.4 mm) polished tempered glass with two silver coats. A heavy, uniform copper coating hermetically seals the silver; the back is protected with heavy waterproof paint. The 3/4" x 5/8" roll-formed, 18-gauge Type 304 stainless steel angle frame has heliarc-welded corners, ground and polished smooth to a uniform satin finish. A concealed hanging bracket locks onto the top and bottom of the frame with tamper-proof set screws; the one-piece back plate is attached to the frame with a theft-resistant locking device.
Install the bracket level and plumb using #10 self-threading screws (by others). Hang the mirror on the bracket and tighten the top and bottom locking screws. ASI’s guidance for the cited 2010 ADA and 2015 ABA standards says the reflecting surface’s bottom edge should be no higher than 40" above the finished floor.
