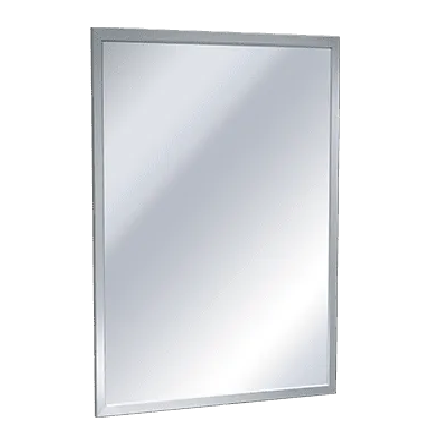

ASI 0600-3016 Inter-Lok Angle Frame Plate Glass Mirror
The ASI 0600-3016 is a 30" W x 16" H surface-mounted plate glass mirror for projects specifying a concealed, locking mount and a satin-finish Type 304 stainless steel frame.
Specifications and construction
- Plate glass mirror in a 3/4" x 5/8" roll-formed, 18-gauge Type 304 stainless steel angle frame.
- Frame corners are heliarc welded, then ground and polished smooth; exposed surfaces have a satin finish.
- A concealed hanging bracket locks to the top and bottom of the frame with tamper-proof set screws.
- The one-piece back plate attaches to the frame with a theft-resistant locking device.
- The manufacturer warrants the mirror against silver spoilage for 15 years from the invoice date.
Installation
Install the bracket level and plumb using #10 self-threading screws, which are by others. Hang the mirror on the bracket and tighten the locking screws at the top and bottom. ASI’s guidance for compliance with the 2010 ADA Accessibility Standards and 2015 ABA Standards calls for the bottom edge of the reflecting surface to be no higher than 40" above finished floor; confirm placement for the project.
