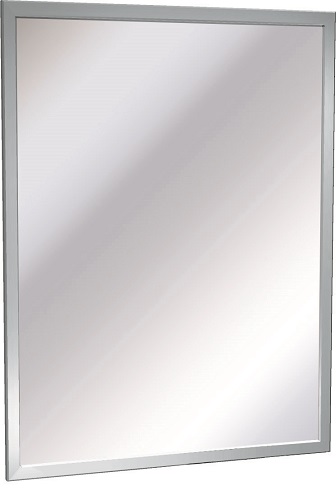

ASI 0600-2030 Inter-Lok Angle Frame Plate-Glass Mirror
The ASI 0600-2030 is a surface-mounted 20" W x 30" H plate-glass mirror with a satin-finish Type 304 stainless steel frame and a concealed locking hanger bracket.
Specifications and construction
- Standard #1 quality plate glass is 1/4" thick, silver-coated, and hermetically sealed with electrolytic copper plating.
- The 18-gauge Type 304 stainless steel frame is roll-formed to a 3/4" x 5/8" angle; welded corners are polished smooth to a uniform satin finish.
- The glass is warranted against silver spoilage for 15 years from the invoice date.
- The concealed hanger bracket locks at the top and bottom with tamper-proof set screws; a theft-resistant locking device secures the one-piece back plate to the frame.
Mounting and placement
Install the bracket level and plumb using #10 self-threading screws, which are by others, then hang the mirror and tighten the top and bottom locking screws. ASI's installation guidance for the 2010 ADA Accessibility Standards and 2015 ABA Standards places the bottom edge of the reflecting surface no higher than 40" above the finished floor; this is manufacturer guidance, not a blanket compliance determination.
