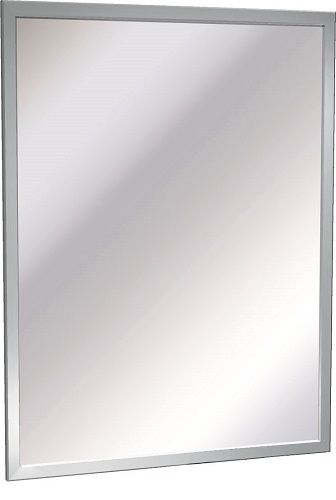

ASI 0600-2824 Stainless Steel Inter-Lok Angle Frame Mirror
The ASI 0600-2824 is a surface-mounted, 28" W x 24" H mirror with plate-glass glazing and a satin-finish Type 304 stainless steel frame. Its concealed hanging bracket and theft-resistant back-plate lock secure the mirror to the mounting assembly.
Specifications
- Mirror: 1/4" plate glass with silver coating and hermetic seal with electrolytic copper plating.
- Frame: roll-formed 18-gauge Type 304 (18-8) stainless steel, 3/4" x 5/8" angle.
- Frame corners are heliarc welded, then ground and polished smooth to a uniform satin finish.
- Surface-mounted design with a concealed hanging bracket that locks at the top and bottom using tamper-proof set screws.
- One-piece back plate attaches to the frame with a theft-resistant locking device.
Mounting guidance
Install the bracket level and plumb with #10 self-threading screws, which are by others. Hang the mirror and tighten the locking screws at the top and bottom. The manufacturer’s accessibility guidance specifies that the bottom edge of the reflecting surface should be no higher than 40" above finished floor; verify the complete installation against project requirements.
