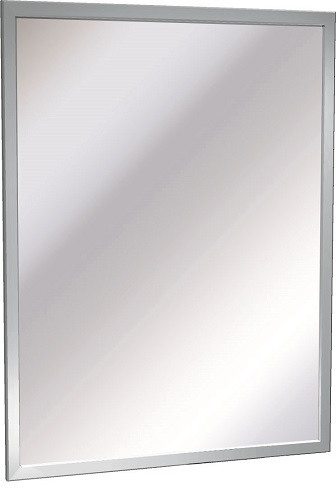

ASI 0600-1828 Inter-Lok Angle Frame Plate Glass Mirror, 18" W x 28" H
This surface-mounted mirror has plate glass in a roll-formed 18-gauge Type 304 stainless steel angle frame. The frame corners are heliarc welded, polished smooth, and finished in satin. A concealed hanging bracket locks to the top and bottom of the frame with tamper-proof set screws; a one-piece back plate attaches to the frame with a theft-resistant locking device.
Installation
Install the bracket level and plumb using No. 10 self-threading screws, supplied by others. Hang the mirror on the bracket and tighten the top and bottom locking screws. Manufacturer guidance for the 2010 ADA Accessibility Standards and 2015 ABA Standards places the bottom edge of the reflecting surface no higher than 40" above finished floor.
