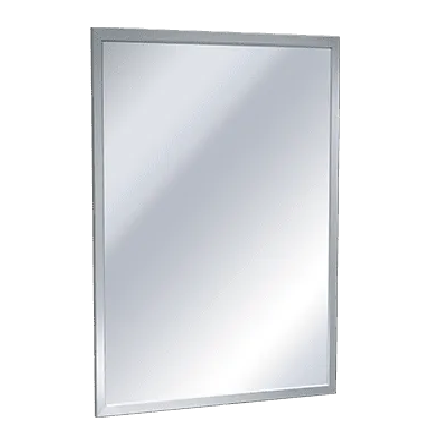

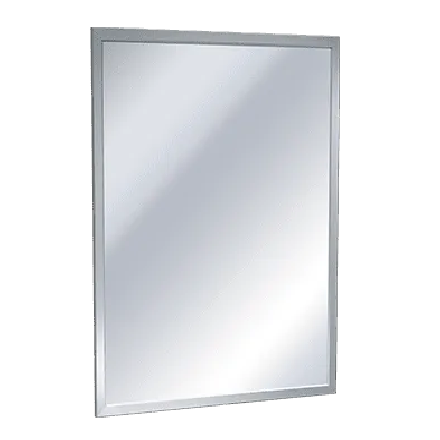

ASI 0600-1818 Stainless Steel Inter-Lok Angle Frame Mirror
The ASI 0600-1818 is an 18" W x 18" H surface-mounted mirror with 1/4" plate glass and a satin-finish Type 304 stainless steel interlocking angle frame. Its concealed hanging bracket and theft-resistant back-plate lock secure the mirror to the wall.
Verified specifications
- Mirror: 1/4" plate glass.
- Frame: roll-formed 18-gauge Type 304 stainless steel with heliarc-welded corners, ground and polished to a uniform satin finish.
- Mounting: concealed bracket engages the top and bottom of the frame; tamper-proof set screws secure it.
- Back: one-piece back plate attached to the frame with a theft-resistant locking device.
Installation guidance
Install the bracket level and plumb using #10 self-threading screws, which are not included. Hang the mirror on the bracket and tighten the top and bottom locking screws. ASI's installation guidance for the 2010 ADA Accessibility Standards and 2015 ABA Standards calls for the bottom edge of the reflecting surface to be no higher than 40" above finished floor; verify applicable project requirements.
