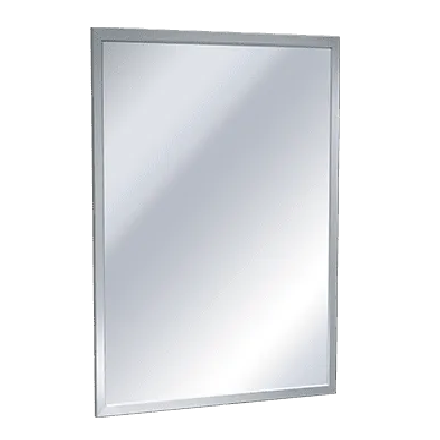

ASI 0600-2218 Inter-Lok Angle Frame Plate Glass Mirror, 22" W x 18" H
This surface-mounted mirror has a 22" x 18" plate-glass mirror in a roll-formed, 18-gauge type 304 stainless steel angle frame. Heliarc-welded corners are ground and polished to a satin finish. A concealed hanging bracket locks to the top and bottom of the frame with tamper-proof set screws; the one-piece back plate attaches to the frame with a theft-resistant locking device.
For installation, mount the bracket level and plumb with #10 self-threading screws, which are by others, then hang the mirror and tighten the top and bottom locking screws. ASI's installation guidance for 2010 ADA Accessibility Standards and 2015 ABA Standards specifies that the bottom edge of the reflecting surface should be no higher than 40" above the finished floor; this is manufacturer guidance, not a blanket compliance determination. The plate glass is warranted against silver spoilage for 15 years from the invoice date.
